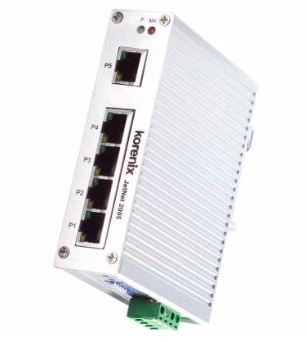

JetNet 2005
Industrial 5-port Compact Fast Ethernet Switch
2、Slim-sized for Industrial Din-rail Application
3、18~32VDC Power Input
4、Relay Output for Port Alarm
5、Supports AC 1.5KV Hi-pot isolation protection
6、IP31 rugged aluminum case
7、Operating temperature -25~70o
C (-40~75o
C wide
temperature model available by request)

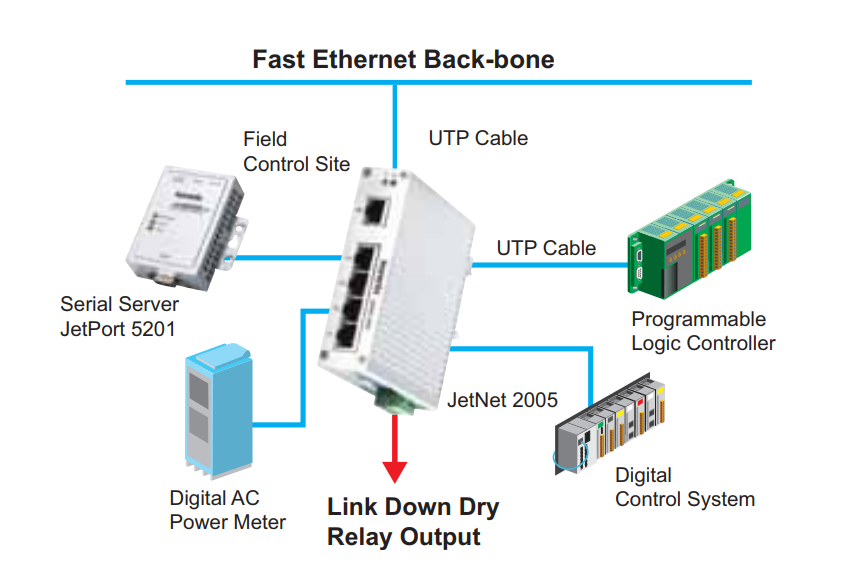

JetNet 2005 Application
1、5 10/100TX Ports with Auto MDI/MDI-X

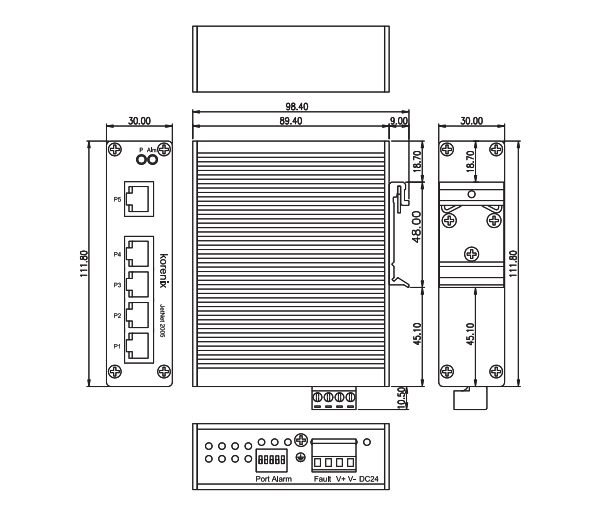

Dimension (Unit = mm)
